315–630 Steel Wire Armoring Machine

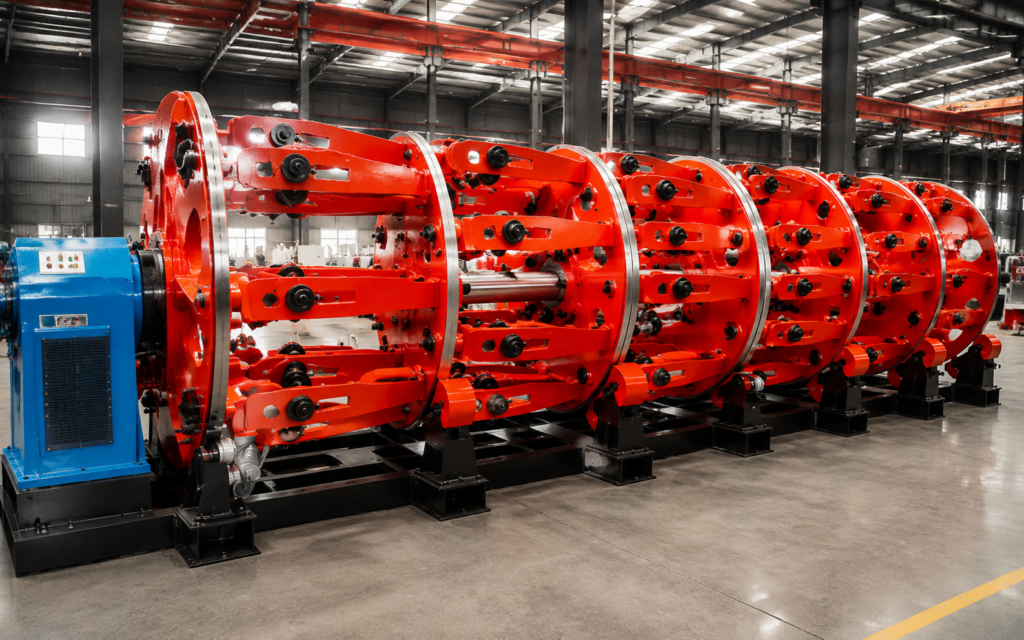

The 315–630 Steel Wire Armoring Machine applies one or two layers of steel wire around cable cores, supporting cable manufacturers producing steel wire armored cables with different cable diameters and armoring configurations.

Primary Application	Single-Layer or Double-Layer Steel Wire Armoring
Available Machine Sizes	315 / 400 / 500 / 630
Steel Wire Diameter	0.5–4.0 mm, Depending on Model
Cage Configuration	24+24 / 24+30 / 48+48 / 40+40
Maximum Cage Speed	40–75 rpm, Depending on Model
Cable Diameter Before Armoring	35–120 mm, Depending on Model

Machine configuration can be tailored to your cable structure, conductor size, production speed and local power requirements.

MACHINE INFORMATION

Overview & Key Features

Controlled Steel Wire Armoring for Cable Protection

The 315–630 Steel Wire Armoring Machine is designed to apply single-layer or double-layer steel wire armor around cable cores. It supports the production of steel wire armored cables requiring an external mechanical protection layer.

The machine combines a planetary gear back-twist system with front and rear cage supports for stable rotation. Mechanical or magnetic hysteresis tension control can be selected, while the magnetic tension version uses independent PLC closed-loop control. Machine size, wire diameter and cage configuration can be selected according to the cable diameter and armoring structure.

Key Features

Planetary gear back-twist system
Independent connected back-twist structure
Front and rear cage support
Mechanical tension control option
Magnetic hysteresis tension control option
Independent PLC closed-loop tension control
Hard-tooth gearbox transmission

TECHNICAL REFERENCE

Typical Configuration & Specifications

The following specifications represent a typical machine configuration and are provided for reference. Final parameters will be confirmed according to your cable structure and production requirements.

Machine Type	315–630 Steel Wire Armoring Machine
Primary Application	Single-Layer or Double-Layer Steel Wire Armoring
Tension Control	Mechanical or Magnetic Hysteresis Tension Control
Back-Twist System	Planetary Gear Back-Twist
Drive System	Main Motor with Hard-Tooth Gearbox Transmission
KS315/24+24	Wire Diameter: 0.5–2.0 mm; Maximum Cage Speed: 75 rpm; Cable Diameter Before Armoring: 35 mm
KS400/24+30	Wire Diameter: 0.6–3.0 mm; Maximum Cage Speed: 70 rpm; Cable Diameter Before Armoring: 50 mm
KS500/24+24	Wire Diameter: 0.8–4.0 mm; Maximum Cage Speed: 65 rpm; Cable Diameter Before Armoring: 60 mm
KS500/48+48	Wire Diameter: 0.8–4.0 mm; Maximum Cage Speed: 45 rpm; Cable Diameter Before Armoring: 120 mm
KS630/40+40	Wire Diameter: 1.0–4.0 mm; Maximum Cage Speed: 40 rpm; Cable Diameter Before Armoring: 100 mm

Configuration Note

Final machine parameters and line configuration will be confirmed according to the cable structure, material size, required production speed, reel dimensions and local power supply.
